Farenhyt IFP-2100ECSB

The Farenhyt IFP-2100ECSB is an intelligent, addressable Fire Alarm Control Panel (FACP) integrated with an Emergency Communication System (ECS). This advanced system unifies fire detection, voice evacuation, and mass notification in a single platform—ensuring fast, reliable communication during any emergency. Designed to meet UL 2572 standards, it provides a powerful and scalable solution for complex building safety needs.

Where It Can Be Used

The Farenhyt IFP-2100ECSB is ideal for large-scale applications that require combined fire alarm and emergency communication functionality.
It is commonly used in:

• Corporate offices and commercial buildings
• Hospitals, clinics, and healthcare centers
• Educational institutions and universities
• Manufacturing plants and industrial facilities
• Airports, transportation hubs, and government buildings
• Shopping malls, hotels, and mixed-use complexes

With the ability to network up to 32 panels, the IFP-2100ECSB ensures unified control across large or multi-building environments.

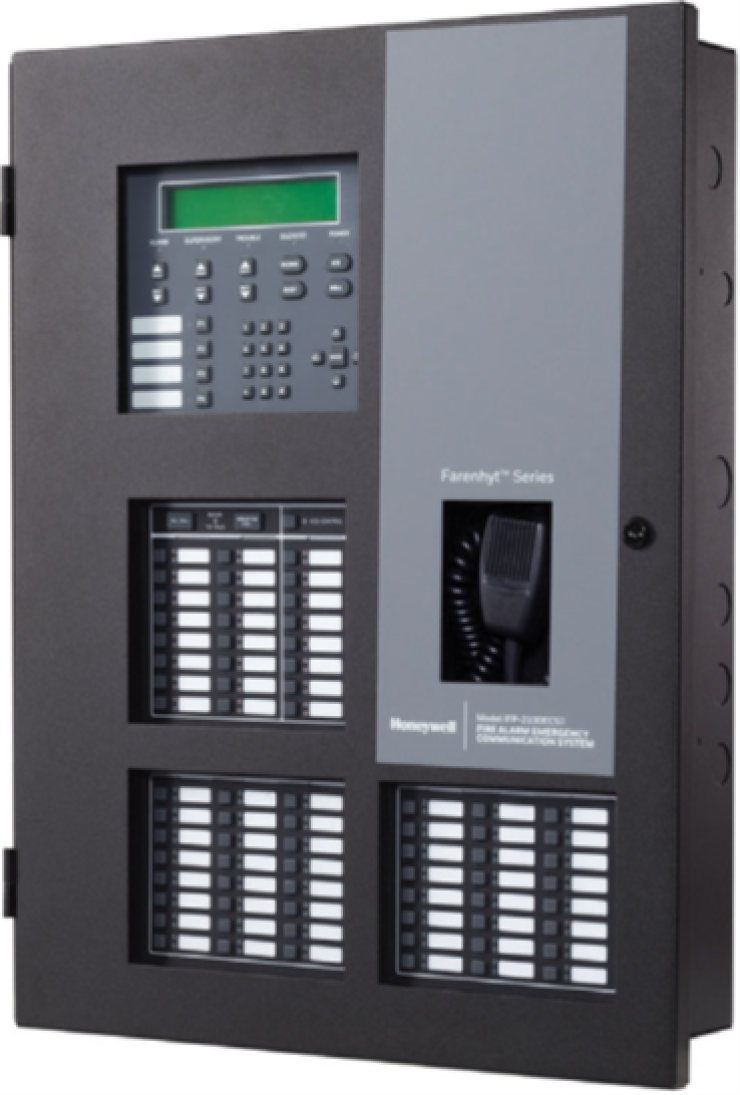

Farenhyt IFP-2100ECSB (Black Cabinet)

The Farenhyt IFP-2100ECSB (Black Cabinet) is a high-performance fire alarm and voice evacuation control panel designed for modern safety infrastructures. It supports multiple Signaling Line Circuit (SLC) protocols and can manage up to 2,100 addressable points using loop expanders.

This intelligent system integrates fire alarm, voice evacuation, paging, and mass notification in a single enclosure, simplifying both installation and maintenance. With its JumpStart AutoProgramming®, USB programming interface, and field-upgradeable firmware, setup is fast, flexible, and future-proof.

The system can prioritize emergency messages over fire alarms when needed—providing clear communication in critical situations.

Advantages

• Integrated fire alarm and voice communication in one system
• Networkable up to 32 panels/sites for large installations
• Supports 159 IDP/SK detectors and 159 modules or 127 SD devices per loop
• AutoProgramming® feature reduces setup time
• 520 Hz tone output meets NFPA 72 requirements
• Field-upgradable firmware ensures long-term compatibility
• Supports up to four SWIFT wireless gateways (49 devices per gateway)
• Expandable up to 2,000 watts of audio power with compatible amplifiers
• Available in Red or Black cabinet for design flexibility
• Built-in IP, DACT, or optional cellular communication
• Four programmable function keys for customized operation
• LCD display with 4 lines and 40 characters for easy monitoring
• Built-in supervised microphone for voice announcements

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and commissions Farenhyt fire alarm and ECS systems across Gujarat and nearby regions.
We proudly serve:

• Ahmedabad, Vadodara, Halol, Sanand, Vapi, Ankleshwar, Dahej, and other industrial cities.
• Industries including commercial complexes, healthcare, petrochemicals, IT parks, manufacturing units, and educational institutions.

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we specialize in end-to-end fire safety solutions powered by the trusted Farenhyt Series. From design and installation to service and maintenance, we ensure every system is compliant, efficient, and tailored to your facility’s safety needs.
