Farenhyt IDP-ZONE-6

The Farenhyt IDP-ZONE-6 Six Zone Interface Module enables seamless integration between conventional two-wire smoke detector zones and advanced Farenhyt addressable fire alarm control panels (FACPs). It converts traditional detection loops into SLC loops, allowing existing devices to communicate intelligently with the system. This makes it the perfect solution for retrofitting or upgrading older fire alarm systems while retaining existing field wiring and devices.

Where It Can Be Used

The Farenhyt IDP-ZONE-6 is ideal for both new installations and retrofit applications where existing conventional detectors need to be connected to modern addressable systems.
It is widely used in:

• Commercial buildings and corporate offices
• Educational institutions and universities
• Hospitals and healthcare facilities
• Manufacturing and industrial plants
• Retail complexes and large public facilities

Its support for both Class A and Class B wiring provides installation flexibility for a wide range of environments.

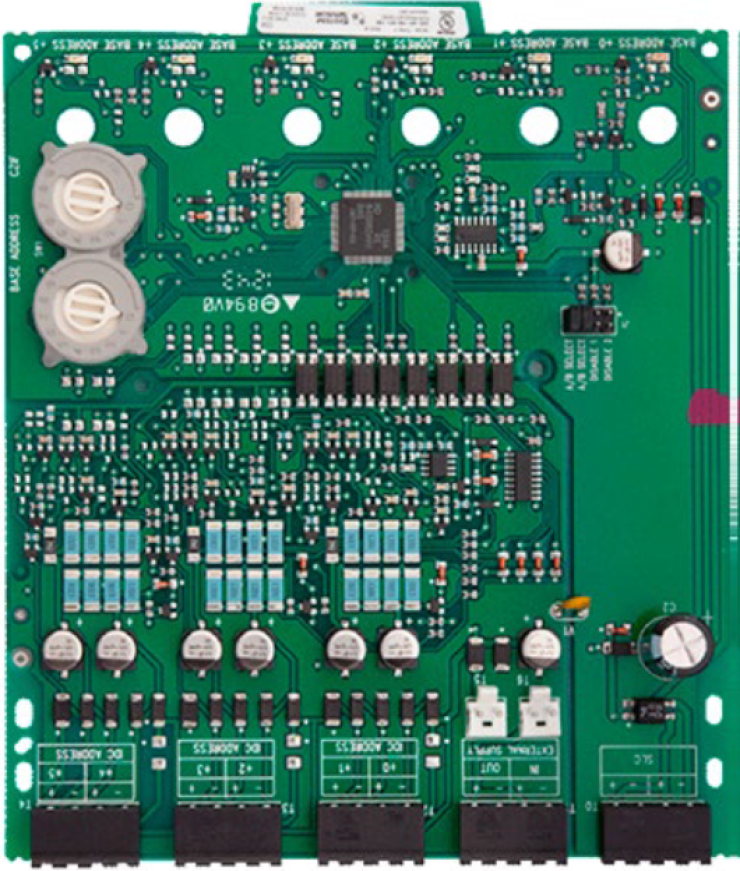

IDP-ZONE-6 Six Zone Interface Module

The Farenhyt IDP-ZONE-6 is an intelligent, addressable interface module designed for use with Farenhyt Series fire alarm control panels. It provides six supervised zone inputs, each capable of monitoring two-wire conventional smoke detectors. The module reports each zone’s status—normal, open, or alarm—directly to the control panel.

Each input operates independently and communicates over a shared SLC loop. Up to two unused zones can be disabled if not required. LEDs for each zone provide local status indication, and removable plug-in terminal blocks simplify wiring. Designed to mount easily inside the IDP-ACB cabinet, this compact module ensures fast installation, easy maintenance, and reliable operation.

Advantages

• Converts up to six conventional zones to addressable communication
• Enables cost-effective retrofitting of existing systems
• Fully supervised and power-limited circuits
• Supports both Class A and Class B wiring
• Individual LED indicators for each input zone
• Rotary address switches for fast configuration
• Two unused zones can be disabled if needed
• Removable terminal blocks for easy wiring
• UL, CSFM, and MEA listed for compliance and reliability

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and commissions Farenhyt IDP-ZONE-6 modules across Gujarat, including Ahmedabad, Vadodara, Halol, Sanand, Vapi, Ankleshwar, and Dahej.
We serve commercial complexes, hospitals, educational institutes, petrochemical industries, and large manufacturing facilities.

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we provide advanced fire alarm and safety solutions powered by Farenhyt intelligent systems. From system design and installation to commissioning and maintenance, our team ensures every installation meets safety standards and delivers long-term reliability.
