Notifier - Addressable Releasing Control Module FCM-1-REL

Addressable Control Module

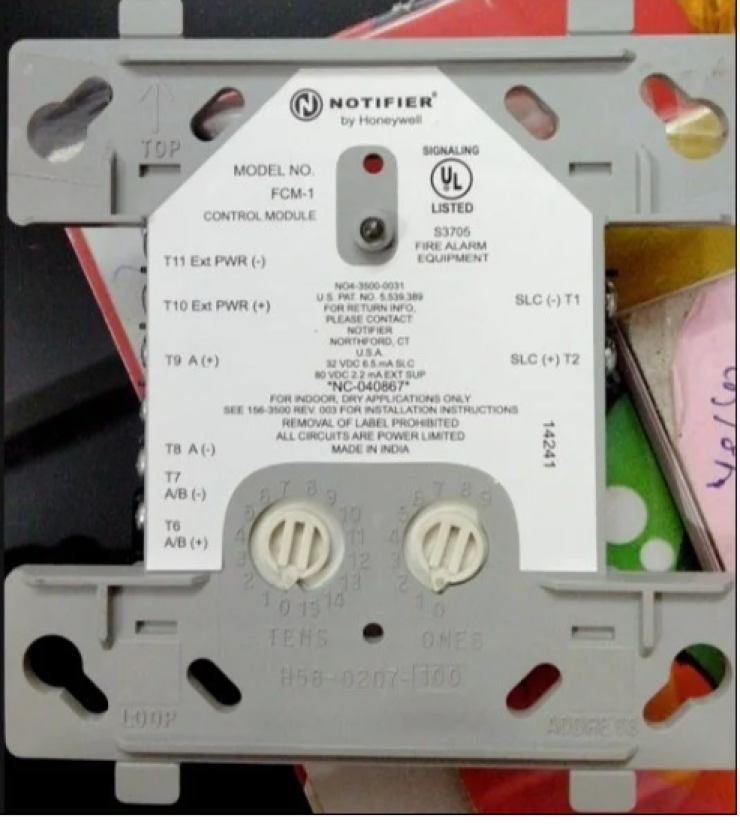

Fire Alarm suggest the FCM-1(A) Addressable Control Module provides Notifier intelligent fire alarm control panels a circuit for Notification Appliances (horns, strobes, speakers, etc.). Addressability allows the FCM-1(A) to be activated, either manually or through panel programming, on a select (zone or area of coverage) basis.

Category: Fire Alarm & Detection System

The FCM-1(A) is used to switch 24 VDC audible/visual power, high-level audio (speakers).

• Built-in type identification automatically identifies these devices to the control panel.

• Internal circuitry and relay powered directly by two-wire SLC loop. The FCM-1(A) module requires power (for horns, strobes, etc.), or audio (for speakers).

• Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.

• LED blink may be deselected globally (affects all devices).

• High noise immunity (EMF/RFI).

• The FCM-1(A) may be used to switch 24-volt NAC power, audio (up to 70.7 Vrms).

• Wide viewing angle of LED.

• SEMS screws with clamping plates for wiring ease.

• Direct-dial entry of address 01– 159 for Flash Scan loops, 01 – 99 for CLIP mode loops.

• Speaker, and audible/visual applications may be wired for Class B or A (Style Y or Z).

Normal operating voltage: 15 to 32 VDC.

Maximum current draw: 6.5 mA (LED on).

Average operating current: 350 μA direct poll, 375 μA group poll with LED flashing, 485 μA Max.

Maximum NAC Line Loss: 4 VDC.

External supply voltage (between Terminals T10 and T11): Maximum (NAC): Regulated 24 VDC; Maximum (Speakers): 70.7 V RMS, 50W.

Drain on external supply: 1.7 mA maximum using 24 VDC supply; 2.2 mA Maximum using 80 VRMS supply.

Max NAC Current Ratings: For class B wiring system, the current rating is 3A; For class A wiring system, the current rating is 2A.

Temperature range: 32°F to 120°F (0°C to 49°C).

Humidity range: 10% to 93% non-condensing.

Dimensions: 4.5" high x 4" wide x 1.25" deep. Mounts to a 4" square x 2.125" deep box.

Accessories: SMB500 Electrical Box; CB500 Barrier
