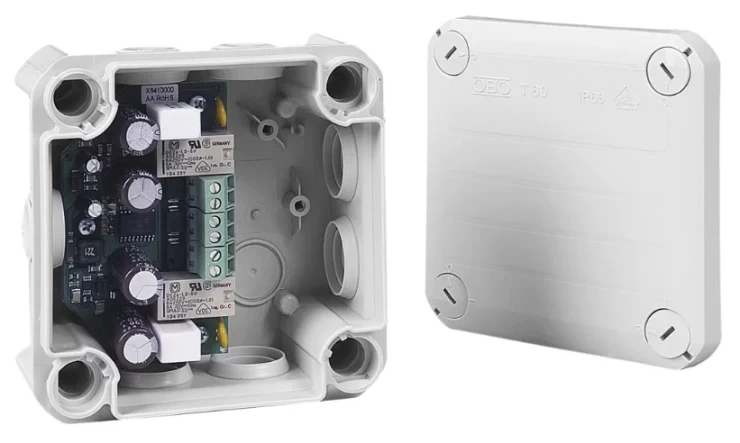

Honeywell VARIODYN D1 – Loop Isolator Module (Part No. 583342)

The Honeywell VARIODYN D1 Loop Isolator Module (LIM) is designed to enhance the reliability of 100V loudspeaker lines in voice alarm systems. It protects the speaker loop against wire breaks and short circuits, automatically isolating the faulty section to ensure continuous system operation.

When each loudspeaker is equipped with a loop isolator module, the system achieves 100% operational reliability, even in the event of a basic line fault. This technology replaces traditional A/B wiring and significantly reduces the risk of complete speaker line failure.

Where It Can Be Used?

The Loop Isolator Module is ideal for voice evacuation and public address systems installed in compliance with DIN VDE 0833-4 and EN 54-16 standards.

It is widely used in:

• Commercial buildings
• Industrial facilities
• Hospitals and healthcare centers
• Airports and metro stations
• Educational institutions
• Petrochemical plants and large infrastructure projects

It is suitable for all commercially available 100V loudspeakers and supports various loop topologies, making it flexible for small and large installations.

Honeywell VARIODYN D1 Loop Isolator Module – 583342

The Honeywell VARIODYN D1 Loop Isolator Module (Part No. 583342) is a short-circuit isolator designed for loop wiring systems connected to the DOM (Digital Output Module). Unlike traditional spur wiring, where a single cable fault can disable multiple speakers, this advanced loop technology ensures that only the affected section is isolated.

With impedance monitoring and intelligent loop management, the system maintains uninterrupted operation without requiring coupling capacitors inside loudspeakers. This innovation not only increases system reliability but also reduces installation costs by eliminating the need for E30 cabling in many cases.

The VARIODYN D1 loop technology represents a major advancement in voice alarm safety, similar to proven fire detection loop systems.

Advantages

• Ensures 100% system reliability when each speaker has a loop isolator
• Automatically isolates wire breaks and short circuits
• Replaces traditional A/B wiring systems
• Reduces wiring and installation costs
• E30 fire-resistant cabling not required in many cases
• No need for additional loudspeakers in small rooms
• Supports up to 64 loop isolator modules per loop
• Compatible with up to 4 loops per DOM
• High protection rating (IP66) for demanding environments

Areas We Serve

Fire Projects Pvt. Ltd. supplies and installs Honeywell VARIODYN D1 Loop Isolator Modules across Ahmedabad, Vadodara, Sanand, Halol, Vapi, Ankleshwar, Dahej, and other industrial zones in Gujarat.

We support commercial complexes, manufacturing plants, oil & gas industries, hospitals, educational campuses, infrastructure projects, and high-rise buildings with certified voice evacuation solutions.

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we deliver complete Honeywell VARIODYN D1 voice alarm solutions — from system design and supply to installation, testing, and commissioning.

Our team ensures compliance with EN 54-16 and DIN standards, offering reliable and future-ready fire safety systems tailored to your facility.

With strong project experience across Gujarat, we focus on quality, fast execution, and dependable after-sales service.

Contact us: +91 98244 42333 | Email:- info@fireprojects.co.in
